Alexander Industrial

Spinner Hanger Solutions

Goff’s Spinner Hangers are designed for high productionapplications where parts can’t be tumbled, helping to eliminate part breakage while providing superior finish, coverage and quality. Parts are placed in a rotating chamber that provides total surface blast coverage, and while blasting occurs in one chamber the opposite chamber can be reloaded. Multi-chamber carousel, in-and-out, hanger table and pass-through models are available.

spinner_hanger_solutions_01@2x-min
spinner_hanger_solutions_02@2x-min
spinner_hanger_solutions_03@2x-min
spinner_hanger_solutions_04@2x-min
spinner_hanger_solutions_05@2x-min
GGoff’s Spinner Hanger machines are proven by: foundries, die casters, investment casters, shot peeners, heat treaters, automotive remanufacturers, fabricators, and product surface coaters. Specifically designed to offer thorough blast coverage to parts or castings that are fragile or cannot be tumbled yet require continuous production output. A comprehensive range of machine sizes and capacities allow for various production requirements and part sizes. Models range from 12” diameter up to 60” swing diameters, plus the Hanger Table models include heavy duty rotary tables for additional versatility.

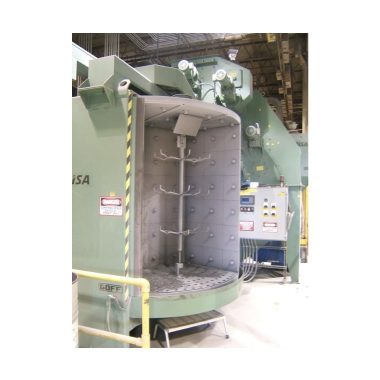

The main work cabinet of the Spinner Hanger encloses a unique revolving carousel doorless blast chamber divided into two compartments. Each section is equipped with its own rotating hook spindle for loading the parts to be cleaned. One important feature of the door-less design is that the machine’s loading area is open and easily accessible during the blast cycle so that one chamber can be loaded while blasting occurs in the other chambers. This continuous work flow greatly increase productivity.

Solutions Guide

Click any product link below for a PDF brochure.

General Brochure
